Top Basic Electronics Interview Questions (2025)

Preparing for a job interview in electronics or electrical engineering requires a strong grasp of core concepts, components, and practical applications. Whether you’re aiming for a role in circuit design, embedded systems, or power electronics, mastering the basics is essential. Employers typically seek candidates who can demonstrate both theoretical knowledge and problem-solving skills related to electronic devices, circuits, and systems.

This article is designed to help job seekers by providing a comprehensive guide to common electronics interview questions. It covers a wide range of topics, including fundamental concepts, key components like diodes and transistors, digital and analog electronics, signal processing, semiconductor physics, and embedded systems. Each section offers clear explanations of essential terms and concepts, helping you build a solid foundation.

By reviewing these questions and answers, you will be better prepared to showcase your knowledge and technical skills in interviews, improving your chances of landing the job you want. Let’s dive into the key areas you should focus on to succeed in your next electronics interview.

Top Basic Electronics Interview Questions

Interview questions play a key role in identifying candidates with the right skills and knowledge. Here are some essential questions you can use to evaluate applicants effectively.

Fundamental Concepts

1) What is Electronics?

Electronics is a branch of physics and electrical engineering that deals with the study and application of devices, circuits, and systems that use electric currents, primarily in the form of semiconductors, to control and process information. It encompasses a wide range of devices, including transistors, diodes, and integrated circuits, which are integral to modern technology such as computers, telecommunications, and automation systems.

2) What is the difference between Electronics and Electrical?

Electronics focuses on the flow of small electrical currents through components like transistors, diodes, and microchips for signal processing, amplification, and control. Electrical engineering, on the other hand, deals with the generation, transmission, and distribution of electricity, including power systems, motors, and electrical grids. While both fields involve electricity, electronics is more concerned with low-power, signal-based systems, and electrical with high-power applications.

3) What is communication?

Communication is the process of exchanging information between individuals, groups, or machines. It involves the transmission of data or messages through various mediums such as speech, written text, signals, or electronic devices. In the context of technology, communication often refers to the transfer of data between systems or devices using protocols, modems, or wireless technologies, such as Wi-Fi, Bluetooth, or satellite links.

4) Different types of communications? Explain.

There are several types of communication:

• Verbal Communication: Involves the use of spoken or written words to convey information.
• Non-verbal Communication: Uses body language, facial expressions, gestures, and posture to convey messages.
• Visual Communication: Involves conveying information through images, charts, diagrams, or symbols.
• Electronic Communication: Involves the use of electronic devices and networks to transmit data, such as email, social media, and video calls.
• Face-to-face Communication: Direct, personal communication where non-verbal cues and immediate feedback play a critical role. Each type plays a unique role in facilitating effective information exchange depending on context and medium.

5) Explain Ohm’s law and its significance in electronics.

Ohm’s Law states that the current (I) flowing through a conductor between two points is directly proportional to the voltage (V) across the two points and inversely proportional to the resistance (R) of the conductor. Mathematically, it’s expressed as: I= V/R. In electronics, Ohm’s law is crucial because it helps in designing and analyzing circuits. It allows engineers to calculate current, voltage, or resistance in a circuit, ensuring components are used within safe operating ranges. Understanding Ohm’s law is fundamental to troubleshooting and optimizing electronic devices.

6) What are the main differences between AC and DC?

The main differences between AC (Alternating Current) and DC (Direct Current) are as follows:

• Direction of Flow: In DC, the flow of electric charge is unidirectional, while in AC, the current alternates direction periodically.
• Source: DC is produced by sources like batteries and solar cells, while AC is generated by power plants and distributed through power grids.
• Application: DC is typically used in low-voltage applications like electronics, whereas AC is used for power transmission and in household appliances due to its ability to be easily transformed to different voltages.
• Efficiency: AC is more efficient for long-distance transmission due to lower energy loss compared to DC. However, DC is preferred for devices requiring stable and continuous power.

Components and Circuits Questions

1) What is a diode?

A diode is a semiconductor device that allows current to flow in only one direction, acting as a one-way valve for electrical current. It consists of a p-n junction, where the p-type material has an abundance of holes (positive charge carriers) and the n-type material has an excess of electrons (negative charge carriers). Diodes are widely used for rectification (converting AC to DC), signal demodulation, voltage regulation, and protecting circuits by blocking reverse voltage.

2) What is a transistor?

A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. It has three layers of semiconductor material: the emitter, base, and collector. Transistors can function as a switch (turning circuits on or off) or as an amplifier (boosting weak signals). There are two main types: NPN and PNP, and they form the basis for modern electronic circuits such as amplifiers, logic gates, and microprocessors.

3) What is a resistor?

A resistor is an electronic component that resists the flow of electric current, causing a voltage drop according to Ohm’s Law. It is used to control current within a circuit, protect sensitive components, and divide voltages. Resistors come in various values, measured in ohms (Ω), and can be made of materials like carbon, metal oxide, or wire wound. They are essential in controlling the current and maintaining the desired function of a circuit.

4) Describe the function of a capacitor in a circuit.

A capacitor is a two-terminal electronic component that stores electrical energy in the form of an electric field. When connected to a power source, it charges up by accumulating electrical charge on its plates. Capacitors are used in various functions such as filtering (removing noise from power supplies), smoothing voltage fluctuations, coupling AC signals between stages of a circuit, and timing applications in oscillators. Capacitors release stored energy when needed, helping maintain stable voltage levels in circuits.

5) Explain the working principle of a transistor.

A transistor operates by using a small input current or voltage to control a larger output current, functioning as a switch or amplifier. In an NPN transistor, for example, a small current injected into the base allows a larger current to flow from the collector to the emitter. The transistor amplifies the input signal in the active region, where the base-emitter junction is forward-biased and the collector-base junction is reverse-biased. The transistor’s ability to control large currents with small input signals is what makes it fundamental in electronics.

6) What is a rheostat?

A rheostat is a variable resistor used to adjust the current in a circuit by changing its resistance. It consists of a resistive element and a movable wiper that slides along the element to vary the resistance. Rheostats are commonly used for controlling the brightness of lights, the speed of motors, and in applications where fine-tuning of resistance is necessary. Unlike potentiometers, which control voltage, rheostats are designed to handle higher currents and are used to regulate the flow of electrical energy.

7) What is feedback?

Feedback in electronic systems refers to the process where a portion of the output of a system is returned (fed back) into the input, either to control or modify the behavior of the system. There are two main types of feedback:

• Positive feedback: Enhances or amplifies the input signal, which can lead to system instability or oscillation (used in oscillators or amplifiers).
• Negative feedback: Reduces or stabilizes the input signal, improving system performance by reducing distortion, increasing bandwidth, and stabilizing gain (common in amplifiers, voltage regulators, and control systems). Feedback is crucial in ensuring the stability, performance, and accuracy of electronic circuits.

Digital Electronics Questions

1) What is Sampling?

Sampling is the process of converting a continuous-time signal (analog signal) into a discrete-time signal by taking periodic samples at specific intervals. The value of the signal is captured at these intervals and represented as discrete data points. Sampling is essential in digital signal processing, as it allows analog signals (like audio or video) to be digitized for processing, storage, and transmission. The rate at which samples are taken is referred to as the sampling rate or frequency.

2) State Sampling Theorem.

The Sampling Theorem, also known as the Nyquist-Shannon sampling theorem, states that a continuous signal can be completely represented by its samples and fully reconstructed if it is sampled at a rate that is at least twice the highest frequency present in the signal. This minimum sampling rate is called the Nyquist rate. Mathematically, if a signal contains frequencies up to fmax​, it must be sampled at a rate

​fs​≥2 fmax​ to avoid aliasing and preserve the signal’s integrity.

3) What is Modulation?

Modulation is the process of varying one or more properties of a carrier signal (such as its amplitude, frequency, or phase) in accordance with a modulating signal, which contains the information to be transmitted. Modulation is used in communication systems to transfer information over long distances by encoding it onto high-frequency carrier waves, making it suitable for transmission through various media (air, cables, etc.). Types of modulation include Amplitude Modulation (AM), Frequency Modulation (FM), and Phase Modulation (PM).

4) What is the difference between combinational and sequential logic circuits?

• Combinational Logic Circuits: These circuits output values based solely on the current inputs. There is no memory or dependence on past inputs. Examples include adders, multiplexers, and decoders. In combinational circuits, the output is determined by the present state of the input values, and the circuit performs operations like arithmetic or logical functions.
• Sequential Logic Circuits: These circuits depend on both the current inputs and the past history of inputs, which means they have memory elements (like flip-flops). Sequential circuits are used in systems that require a sequence of operations, such as counters, registers, and clocks. The output is determined by the current inputs as well as the stored states from previous inputs.

5) Explain the concept of Flip-flops and their types.

A flip-flop is a basic memory element in digital electronics used to store a single bit of data. It has two stable states (representing 0 and 1) and can change states based on input signals, typically a clock pulse. Flip-flops are the building blocks of sequential circuits. The most common types of flip-flops are:

• SR (Set-Reset) Flip-Flop: A basic flip-flop with two inputs (Set and Reset) and two outputs (Q and Q’). It stores a bit based on the inputs.
• D (Data) Flip-Flop: Has a single data input, and the state is updated on the clock edge, with the output following the input.
• JK Flip-Flop: A more versatile flip-flop where both inputs (J and K) can be used to toggle, set, or reset the output depending on the clock signal.
• T (Toggle) Flip-Flop: Toggles the output between 0 and 1 with each clock pulse, used in counters and frequency division.

6) What is the purpose of a Multiplexer in digital circuits?

A multiplexer (MUX) is a digital switch that selects one of many input signals and forwards the chosen input to a single output line. It allows multiple signals to share a single transmission line or channel. A multiplexer is controlled by a set of selection lines that determine which input signal is connected to the output. Multiplexers are commonly used in applications where multiple data sources need to be transmitted over a single line or where multiple devices share common resources, such as in communication systems, data routing, and signal processing.

Analog Electronics Questions

1) What is an Operational Amplifier (Op-Amp)?

An operational amplifier (op-amp) is a high-gain, direct current (DC) coupled electronic voltage amplifier with a differential input and usually a single-ended output. It is designed to amplify the difference between two input signals. Op-amps are commonly used in a variety of analog circuits, including signal amplification, filtering, and mathematical operations like addition, subtraction, and integration. The ideal op-amp has infinite open-loop gain, infinite input impedance, and zero output impedance.

2) Describe the working principle of a voltage regulator.

A voltage regulator is an electronic device that maintains a constant output voltage level despite variations in the input voltage or load conditions. The working principle of a voltage regulator involves adjusting the current through the regulator to ensure the output voltage remains stable. There are two main types of voltage regulators:

• Linear Voltage Regulator: It works by dissipating excess power as heat to maintain a stable output voltage. The most common example is the LM7805, which provides a fixed 5V output. In a linear regulator, the difference between input and output voltages is dropped across a pass element (like a transistor).
• Switching Voltage Regulator: It uses a high-frequency switch and energy storage elements (inductors and capacitors) to efficiently convert input voltage to a desired output voltage, with less heat dissipation. Examples include buck (step-down), boost (step-up), and buck-boost regulators.

3) What is the significance of feedback in amplifier circuits?

Feedback in amplifier circuits is essential for controlling the performance and stability of the amplifier. It involves feeding a portion of the output signal back into the input, and it plays several key roles:

• Stabilizing Gain: Feedback allows precise control of the amplifier’s gain. By using negative feedback, the overall gain can be stabilized, reducing distortion and improving linearity.
• Improving Bandwidth: Negative feedback often increases the bandwidth of the amplifier by reducing the gain at high frequencies, allowing the amplifier to work effectively across a broader range of signals.
• Reducing Distortion: Negative feedback reduces harmonic distortion and non-linear behavior, ensuring the output signal closely mirrors the input signal.
• Improving Input and Output Impedance: Feedback can adjust the input impedance and output impedance of an amplifier to make it more suitable for specific applications.
• Ensuring Stability: Feedback can also help stabilize the amplifier, preventing oscillations or unwanted behaviors due to excessive gain or improper circuit design.

Power Electronics Questions

1) What is a Rectifier?

A rectifier is an electronic device that converts AC (alternating current) into DC (direct current) by allowing current to flow in only one direction. It is commonly used in power supplies. Types include:

• Half-Wave Rectifier: Uses one diode, produces a pulsating DC.
• Full-Wave Rectifier: Uses two or four diodes, provides smoother DC output.

2) Explain the Working Principle of a Buck Converter.

A buck converter steps down a higher input voltage to a lower output voltage using a switch (typically a transistor), an inductor, diode, and capacitor. The switch rapidly turns on and off, storing energy in the inductor and releasing it to the load through the diode. The capacitor smooths the output, resulting in a stable, lower DC voltage.

3) What is Power Factor Correction, and Why is it Important?

Power factor correction (PFC) improves the phase alignment between voltage and current, increasing efficiency. A higher power factor reduces energy loss, lowers utility costs, and prevents equipment overheating. PFC techniques, such as capacitors or active PFC circuits, are used to correct low power factors, enhancing system performance and reducing reactive power in AC electrical systems.

Signal Processing Questions

1) What is the Nyquist Sampling Theorem, and Why is it Important?

The Nyquist Sampling Theorem states that a continuous signal can be completely represented by its samples and reconstructed if it is sampled at a rate at least twice the highest frequency present in the signal. This minimum sampling rate is called the Nyquist rate. The theorem is crucial to prevent aliasing, which occurs when high-frequency components are misrepresented as lower frequencies, ensuring accurate digital signal representation and reconstruction.

2) Explain the Difference Between FIR and IIR Filters.

• FIR (Finite Impulse Response) Filters: These filters have a finite duration impulse response, meaning they rely only on the current and past input values. They are inherently stable and easy to design, but may require more computational resources for complex filters.
• IIR (Infinite Impulse Response) Filters: These filters have an infinite duration impulse response, utilizing both current and past input and output values. They are more computationally efficient but can be unstable and harder to design.

3) What is the Purpose of a Phase-Locked Loop (PLL) in Electronic Systems?

A Phase-Locked Loop (PLL) is a feedback control system used to synchronize the phase of an output signal with a reference signal. It is commonly used for frequency synthesis, demodulation, and clock generation in communication systems. PLLs help maintain a stable frequency output, reduce phase noise, and improve signal integrity, making them essential in systems like radio transmitters, receivers, and digital clocks.

Semiconductor Physics Questions

1) What is a Semiconductor?

A semiconductor is a material with electrical conductivity between that of a conductor and an insulator. It has unique properties that can be altered by doping or external factors like temperature. Common semiconductors include silicon and germanium. Their ability to conduct electricity can be controlled, making them ideal for devices like diodes, transistors, and integrated circuits in electronics.

2) What is a PN Junction Diode?

A PN junction diode is a two-terminal semiconductor device formed by joining p-type and n-type materials. The p-type material has an excess of holes (positive charge carriers), and the n-type material has excess electrons (negative charge carriers). When connected to a circuit, the diode allows current to flow in one direction (forward bias) and blocks it in the opposite direction (reverse bias), making it useful for rectification.

3) What is Latch-up?

Latch-up is a phenomenon in integrated circuits (ICs) where a parasitic structure creates a short circuit, leading to high current flow and potential damage to the device. It occurs when unintended feedback paths form between the n-type and p-type materials in a semiconductor. This can be triggered by high voltage or radiation, causing the device to “latch” into an unstable state, which requires power cycling to reset.

4) Explain the Difference Between Intrinsic and Extrinsic Semiconductors.

Intrinsic Semiconductors: These are pure semiconductor materials (e.g., silicon or germanium) with no added impurities. Their electrical properties are determined solely by the material itself, and their conductivity is relatively low at room temperature.

Extrinsic Semiconductors: These are doped with impurities (e.g., phosphorus for n-type, boron for p-type) to increase conductivity. The doping introduces free charge carriers (electrons or holes), enhancing the material’s ability to conduct electricity.

5) What is the Band Gap, and How Does It Affect the Electrical Properties of a Material?

The band gap is the energy difference between the valence band (where electrons are bound) and the conduction band (where electrons are free to move). Materials with a small band gap (like semiconductors) can conduct electricity when energy is provided (e.g., heat or light). Insulators have a large band gap, preventing electrons from moving. A material’s electrical conductivity depends on its band gap size; smaller gaps lead to better conductivity at lower temperatures.

Electromagnetic Theory Questions

1) What is Electromagnetic Interference (EMI)?

Electromagnetic interference (EMI) refers to the disturbance caused by electromagnetic waves that disrupt the normal operation of electrical or electronic devices. EMI can originate from external sources like motors, power lines, or radio transmitters, or from the device itself. It affects circuits by inducing unwanted currents or voltages, leading to malfunction, degradation in performance, or complete failure of the equipment. Proper shielding, grounding, and filtering techniques are used to mitigate EMI.

2) What is the Skin Effect?

The skin effect is a phenomenon where alternating current (AC) tends to flow primarily at the surface of a conductor, with the current density decreasing exponentially as the depth inside the conductor increases. This occurs because the changing magnetic fields produced by AC induce eddy currents that oppose the flow of current at deeper points. The skin effect increases with frequency, leading to higher resistance at higher frequencies, and is a key consideration in high-frequency transmission and the design of cables.

3) What is Electromagnetic Compatibility (EMC)?

Electromagnetic compatibility (EMC) refers to the ability of electrical and electronic equipment to function properly in their electromagnetic environment without causing or suffering from electromagnetic interference (EMI). EMC ensures that devices do not emit excessive electromagnetic energy that could disrupt other devices, while also being immune to interference from external sources. Compliance with EMC standards is critical in preventing operational issues and ensuring the safe and reliable operation of electronic systems in shared environments.

Measurement and Instrumentation Questions

1) What is an Oscilloscope?

An oscilloscope is an electronic test instrument used to visualize and measure electrical signals. It displays voltage waveforms over time on a screen, allowing users to observe signal characteristics such as amplitude, frequency, and waveform shape. Oscilloscopes are essential tools for troubleshooting, analyzing signal integrity, and performing waveform analysis in electronics, communications, and engineering applications.

2) What is Accuracy and Precision in Measurements?

Accuracy refers to how close a measured value is to the true or accepted value. High accuracy means the measurement is very close to the actual value.

Precision refers to the consistency or repeatability of measurements. High precision means the measurements are closely grouped together, even if they are not close to the true value. Ideally, measurements should be both accurate and precise for reliable results.

3) Explain the Principle of Analog-to-Digital Conversion (ADC).

Analog-to-digital conversion (ADC) involves converting continuous analog signals into discrete digital values. The process includes two key steps:

• Sampling: The analog signal is sampled at regular intervals, capturing its instantaneous voltage at specific moments.
• Quantization: The sampled voltage is then mapped to the nearest digital value based on a predefined resolution (bit depth). The number of bits determines the precision of the conversion. The ADC outputs a series of binary numbers that represent the analog signal in digital form for processing by digital systems.

Embedded Systems Questions

1) What is an Embedded System?

An embedded system is a specialized computer designed to perform specific tasks within a larger system. Unlike general-purpose computers, embedded systems are dedicated to particular functions, such as controlling devices, monitoring systems, or processing data. They are often resource-constrained, with limited processing power, memory, and input/output capabilities. Examples include smartphones, washing machines, automotive control systems, and medical devices.

2) What are the Main Components of an Embedded System?

The main components of an embedded system are:

• Microcontroller or Microprocessor: The central processing unit that controls the system.
• Memory: RAM for temporary storage and ROM for storing firmware or software.
• Input/Output Interfaces: Sensors, actuators, and communication ports for interacting with the external environment.
• Power Supply: Provides the necessary power for the system to function.
• Software/Firmware: The code that runs on the embedded system, providing control and functionality.

3) Explain the Role of a Microcontroller in an Embedded System.

A microcontroller is the heart of many embedded systems. It integrates a CPU, memory (RAM and ROM), and peripherals (like timers, ADCs, and I/O ports) into a single chip. It processes data, executes software instructions, and controls the hardware components of the embedded system. Microcontrollers are designed for low power consumption and real-time processing, making them ideal for embedded applications in consumer electronics, automotive systems, and IoT devices.

4) What is the Difference Between a Microcontroller and a Microprocessor?

• Microcontroller: A microcontroller is a compact, integrated chip that contains a CPU, memory (RAM and ROM), and peripherals, designed for specific control tasks. It is ideal for embedded systems and is optimized for low power and cost.
• Microprocessor: A microprocessor is a more powerful processor that typically only includes the CPU. It requires external components (e.g., memory, I/O controllers) to function and is used in more complex systems like personal computers, where higher processing power and flexibility are needed.

5) What are Interrupts, and How are They Used in Embedded Systems?

Interrupts are signals that temporarily halt the normal execution of a program to handle urgent tasks. In embedded systems, interrupts allow the system to respond to real-time events, like a button press or a sensor reading, without constantly checking for them (polling). When an interrupt occurs, the system jumps to a special interrupt service routine (ISR) to handle the event, then resumes normal operation. Interrupts enable efficient, responsive, and time-sensitive processing.

6) What is a Real-Time Operating System (RTOS)?

A Real-Time Operating System (RTOS) is an operating system designed to handle time-critical tasks with predictable timing. RTOSes are used in systems where delays cannot be tolerated, such as automotive control, medical devices, or industrial automation. An RTOS provides mechanisms for managing tasks, handling interrupts, and ensuring that time-critical processes are executed within specific time constraints (determinism), providing reliable and fast responses to external events.

7) Describe the Concept of Watchdog Timers in Embedded Systems.

A watchdog timer is a hardware or software mechanism used to detect and recover from system malfunctions. It operates by periodically resetting itself (via the microcontroller). If the system fails to reset the timer within a predefined time interval (usually due to a software crash or hang), the watchdog triggers a reset, rebooting the system to restore normal operation. Watchdog timers help ensure reliability and prevent systems from becoming unresponsive.

8) What is the Significance of Power Management in Embedded Systems?

Power management in embedded systems is crucial because many embedded devices are battery-operated or need to be energy-efficient. Efficient power management extends battery life, reduces heat generation, and minimizes energy waste. Techniques such as dynamic voltage and frequency scaling (DVFS), low-power sleep modes, and optimizing processing cycles are employed to reduce power consumption while maintaining performance and functionality, especially in portable or remote applications.

9) Explain the Difference Between Polling and Interrupt-Driven I/O.

• Polling: In polling, the system continuously checks (or “polls”) the status of an I/O device to detect any changes or requests. It wastes CPU time by repeatedly checking, making it less efficient for time-sensitive operations.
• Interrupt-Driven I/O: In interrupt-driven I/O, the system is interrupted by an I/O device when it requires attention, allowing the CPU to perform other tasks until the interrupt occurs. This method is more efficient, as it reduces unnecessary checking and optimizes CPU usage.

10) What is Debouncing, and Why is it Necessary in Embedded Systems?

Debouncing is the process of ensuring that only one signal is registered when a mechanical switch is pressed or released. Mechanical switches often produce multiple, rapid signals (bounces) before settling into a stable state. In embedded systems, debouncing is necessary to prevent erroneous multiple inputs caused by these bounces. This is typically achieved through hardware (e.g., capacitors) or software (e.g., timing filters) to ensure that only one event is recorded per press.

Once you have the right set of questions, it’s equally important to approach the interview with the right strategy. Let’s look at a useful interview tip next.

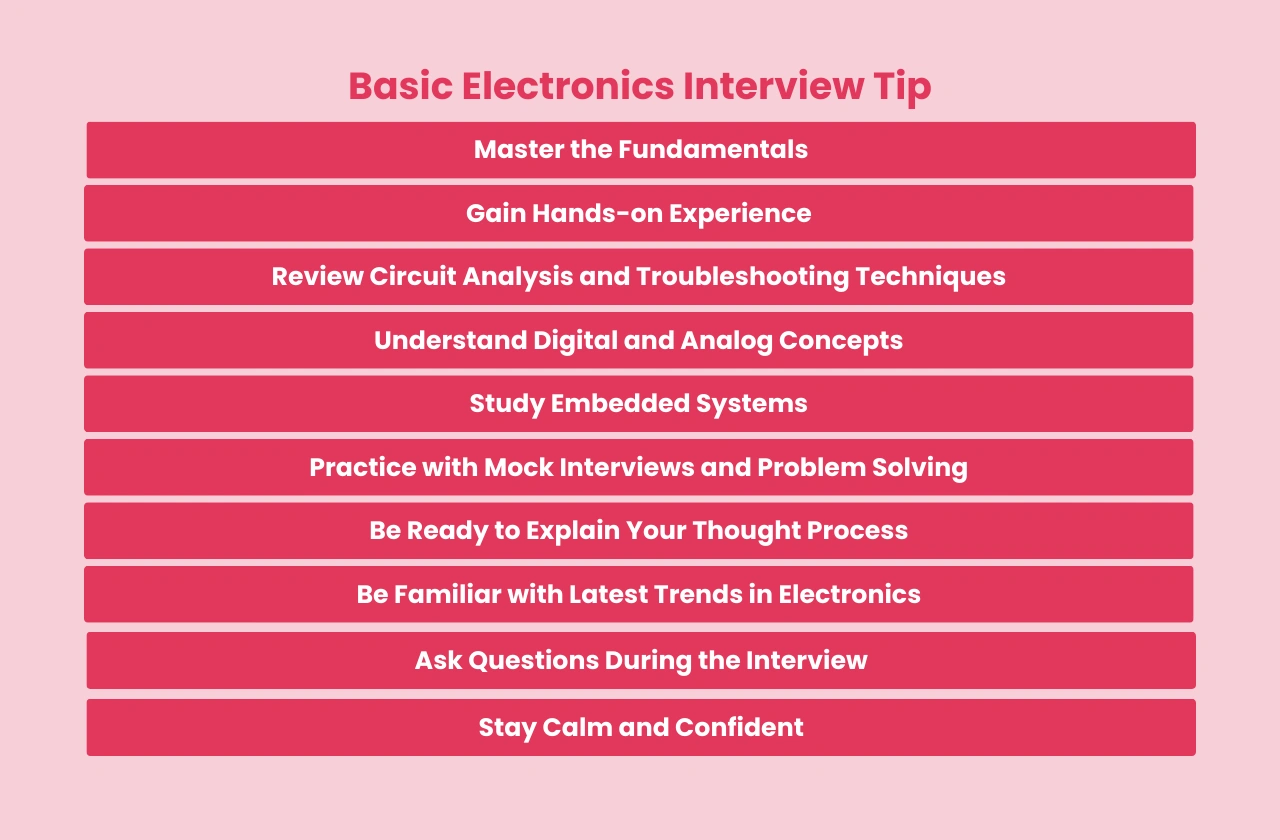

Basic Electronics Interview Tip

Preparing for an electronics interview goes beyond just memorizing technical concepts and definitions. Employers look for candidates who can demonstrate a solid understanding of basic electronics principles, show problem-solving abilities, and communicate their knowledge clearly. Here are some valuable tips to help you succeed in your electronics interview:

1) Master the Fundamentals

Understanding the foundational concepts in electronics is crucial for any interview. You should be able to explain core topics clearly, such as Ohm’s Law, Kirchhoff’s Laws, and the difference between AC and DC. These are topics that frequently come up during interviews, and being able to discuss them confidently shows that you have a strong grasp of the basics.

Make sure you know the key components inside most circuits, including resistors, capacitors, diodes, transistors, and their respective functions. You should also be comfortable with common electronic measurements like voltage, current, resistance, and power.

Focus on learning not only the theoretical aspects but also the practical applications of these concepts. For example, knowing how to design a simple resistor divider circuit, or how a transistor acts as an amplifier or switch, will be extremely helpful.

2) Gain Hands-on Experience

While theoretical knowledge is essential, practical experience is equally important. Employers often ask practical questions or present real-world scenarios to see if you can apply your knowledge in a hands-on setting. If you haven’t already, try building circuits or working on small projects that use common components such as resistors, capacitors, LEDs, and transistors. This hands-on practice will help solidify your understanding and make you more confident when solving problems during the interview.

Use simulation tools like LTSpice or Tinkercad to practice building circuits virtually. These tools can help you understand circuit behavior without needing physical components. However, having experience with a breadboard and physical components will make a big difference when answering interview questions about circuit design.

3) Review Circuit Analysis and Troubleshooting Techniques

Interviewers may ask you to analyze circuits or troubleshoot a faulty system. Familiarize yourself with common analysis methods, such as:

• Nodal analysis
• Mesh analysis
• Thevenin’s and Norton’s Theorems
• Superposition Theorem

These methods allow you to break down complex circuits into manageable steps and provide accurate solutions. Being able to analyze circuits methodically and quickly is essential during the interview process.

Additionally, interviewers may present a circuit diagram with a problem. In such cases, showing how you would troubleshoot the circuit step-by-step—checking components like resistors, capacitors, and transistors—will demonstrate your problem-solving skills. Be prepared to explain your reasoning behind each step.

4) Understand Digital and Analog Concepts

Electronics covers both analog and digital systems, and interviewers will expect you to have a strong understanding of both. Be sure to review important topics in digital electronics such as logic gates, flip-flops, multiplexers, and ADCs (Analog-to-Digital Converters). Understanding the difference between combinational and sequential logic circuits is vital, as well as knowing how these circuits are used in modern devices.

Similarly, make sure you understand analog electronics, including operational amplifiers (op-amps), filters, and voltage regulators. Know how to analyze basic op-amp circuits, both inverting and non-inverting configurations, and understand the importance of feedback in amplifier circuits.

5) Study Embedded Systems

As embedded systems become increasingly important in the electronics industry, it’s important to have a good grasp of microcontrollers, microprocessors, and related systems. Review topics such as:

• The role of microcontrollers in embedded systems
• Interrupts and their usage
• Real-time operating systems (RTOS)
• Embedded system communication protocols (e.g., SPI, I2C)

Being able to discuss the advantages and differences between microcontrollers and microprocessors will show your understanding of the subject. It’s also helpful to know how to design and implement basic embedded systems, as many electronics roles require working with embedded hardware and software.

6) Practice with Mock Interviews and Problem Solving

Once you have reviewed the major topics, try practicing mock interviews or solving timed problems. Many technical interviews focus on your ability to think on your feet and solve problems under pressure. Practicing with timed quizzes or interview questions will help you become more comfortable with the interview format and improve your ability to work efficiently.

You can also seek out feedback from peers, mentors, or online forums. Sharing your answers with others and discussing alternative solutions will help you identify areas for improvement.

7) Be Ready to Explain Your Thought Process

During an electronics interview, employers are not just interested in whether you arrive at the correct solution, but also how you approach problems. Be prepared to explain your thought process clearly when working through a problem. Explain why you chose a certain method for analysis or troubleshooting, how you applied theory to practice, and why your solution makes sense.

Employers want to see that you can break down complex problems into smaller, manageable parts and approach them logically. Strong communication skills are critical here—being able to express your ideas clearly will help you impress your interviewers.

8) Be Familiar with Latest Trends in Electronics

While foundational knowledge is key, it’s also important to stay up-to-date with the latest trends in electronics. Topics like Internet of Things (IoT), wireless communication technologies (e.g., Bluetooth, Zigbee, Wi-Fi), and renewable energy systems are increasingly relevant. Be ready to discuss how emerging technologies affect the electronics field and the role they play in the devices and systems you might work on.

9) Ask Questions During the Interview

An often-overlooked but valuable tip is to ask insightful questions during the interview. Asking questions about the company’s projects, the types of systems you’ll work on, or the tools they use will show that you’re engaged and enthusiastic about the position. It also gives you a better understanding of the role and whether it aligns with your skills and interests.

10) Stay Calm and Confident

Finally, remember that interviews can be nerve-wracking, but staying calm and confident is key. Don’t be afraid to ask for clarification if a question is unclear, and take your time to think through the problem before answering. It’s okay to pause and gather your thoughts—employers understand that thoughtful answers are often better than quick, rushed ones.

With this tip in mind, you are ready to wrap up your interview process successfully. Let’s summarize everything in the conclusion.

Conclusion

In conclusion, preparing for an electronics interview requires a balanced understanding of theoretical concepts and practical applications. This article has covered essential topics like basic electronic components, digital and analog systems, signal processing, power electronics, and embedded systems—areas commonly tested by employers. By reviewing and understanding these key topics, you’ll be better equipped to answer technical questions and demonstrate your expertise.

As a job seeker, it’s crucial to not only understand these concepts but also to be able to apply them to real-world problems. Practice solving problems, using tools like oscilloscopes or simulation software, and stay up to date with emerging technologies. Additionally, employers often look for candidates who can think critically and troubleshoot effectively, so sharpening these skills will also help you stand out.

By thoroughly preparing for the types of questions presented in this article, you’ll be more confident and ready to tackle any technical interview. With dedication and practice, you’ll significantly improve your chances of landing your desired role in the electronics field.
